12mm Door Lock Motor Metal Spur Gearbox N10 N20 N30 Dc Motor With Encoder

Product Categories

Shenzhen Tronsun Motor Co., Ltd

Contact Now

12mm Door Lock Motor Metal Spur Gearbox N10 N20 N30 Dc Motor With Encoder

Ask Lasest Price
Brand Name :	Tronsun Motor
Model Number :	12GFN20
Certification :	RoHS
Price :	Negotiation
Payment Terms :	T/T, Paypal
Supply Ability :	500kpcs/month
Delivery Time :	25 Working Days

Add to Cart

Product Details
Company Profile

12mm Door Lock Motor Metal Spur Gearbox N10 N20 N30 Dc Motor With Encoder

High quality 12mm metal spur gearbox and N10 N20 N30 dc motor with encoder small door lock motors

Model: 12GFN10/12GFN20E/12GFN30

Tytical Application:

Electronic Door Lock

Smart Home appliance

Smart Robot

Toys

Features:

Shaft Material: Plastic or metal

Oil-impregnated bearing

Output power 0.1-1.5W

12*10mm diameter

Encoder available

Metal Spur gearbox

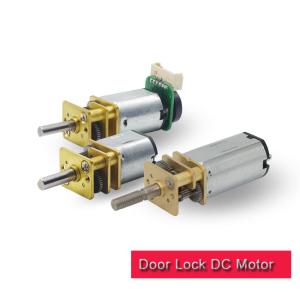

Product Showcase:
12mm Door Lock Motor Metal Spur Gearbox N10 N20 N30 Dc Motor With Encoder

Outline Drawing:

12mm Door Lock Motor Metal Spur Gearbox N10 N20 N30 Dc Motor With Encoder

Motor Performance:

Gearbox Length (mm)	Stage Number	Reduction Ratio					Rated Torque	Bearable Maximum Instant Torque
							g.cm
9	2	3/1	5/1	10/1			200	500
	3	17/1	20/1	30/1	36/1		300	600
	4	50/1	75/1	100/1			400	800
	5	150/1	210/1	250/1	298/1	380/1	500	1200
12.5	7	625/1	1000/1				800	1600

MODEL	REDUCTION RATIO	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY				STALL
		OPERATING RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE	OUTPUT	TORQUE	CURRENT
		OPERATING RANGE	V	rpm	A	rpm	A	g.cm	W	g.cm	A
12GFN10-10-031500	10/1	1.5~3.5	3.0	1500	0.04	1110	0.12	12	0.14	45	0.36
12GFN10-100-03150	100/1	1.5~3.5	3.0	150	0.04	106	0.13	100	0.11	345	0.36
12GFN10-100-06220	100/1	2.5~6.0	6.0	220	0.03	180	0.13	100	0.18	567	0.56
12GFN10-210-06105	210/1	2.5~6.0	6.0	105	0.03	85	0.13	200	0.17	1050	0.56
12GFN10-380-0658	380/1	2.5~6.0	6.0	58	0.03	47	0.14	370	0.18	1920	0.56

MODEL	REDUCTION RATIO	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY				STALL
		OPERATING RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE	OUTPUT	TORQUE	CURRENT
		OPERATING RANGE	V	rpm	A	rpm	A	g.cm	W	g.cm	A
12GFN20-298-0675E	298/1	3.0~6.0	6.0	75	0.07	63	0.22	600	0.39	3868	1.07
12GFN20-150-06130E	150/1	3.0~6.0	6.0	130	0.06	100	0.22	350	0.36	1596	0.77
12GFN20-50-06310E	50/1	3.0~6.0	6.0	310	0.06	196	0.2	200	0.40	545	0.46
12GFN20-210-06133E	210/1	3.0~6.0	6.0	133	0.07	103	0.41	700	0.74	3160	1.61
12GFN20-30-061000E	30/1	3.0~6.0	6.0	1000	0.075	820	0.4	100	0.84	550	1.92
12GFN20-1000-0614E	1000/1	3.0~6.0	6.0	14	0.035	12.3	0.06	600	0.08	4968	0.33

MODEL	REDUCTION RATIO	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY				STALL
		OPERATING RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE	OUTPUT	TORQUE	CURRENT
		OPERATING RANGE	V	rpm	A	rpm	A	g.cm	W	g.cm	A
12GFN30-50-03300	50/1	2.0~4.0	3.0	300	0.075	252	0.36	140	0.36	875	1.87
12GFN30-100-05165	100/1	2.5~6.0	5.0	165	0.05	128	0.41	500	0.66	2240	1.65
12GFN30-150-06115	150/1	3.0~7.0	6.0	115	0.035	95	0.17	300	0.29	1823	0.82
12GFN30-298-0658	298/1	3.0~7.0	6.0	58	0.035	50	0.15	500	0.26	3620	0.82
12GFN30-100-09240	100/1	3.0~9.0	9.0	240	0.075	205	0.2	300	0.63	2110	1.15
12GFN30-1000-1212	1000/1	5.0~13.0	12.0	165	0.05	10.8	0.04	800	0.09	8385	0.23

The Shaft and the motor performance such as voltage and speed can be custom made.

PLS download PDF spec for referrence.

12GFN10.pdf

12GFN20E.pdf

12GFN30.pdf

FAQ

Q: Can I have samples for testing first?
A: Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.

Q: How do you make sure motor quality?
A: We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.

Q: What's the main usage of the micro dc gear motor?
A: Our motor widely used in Home Appliance,Office Equipment,Health-care appliance,Sanitation industry, High-class toy,Banking System,Electronic and electrical tools,automation industry, bank equipments,payment equipments,vending machines,power door lock,electric door lock.

Q: Do you accept customize?
A: Sure,as we have a strong design team,any problems will get our technical answer.
