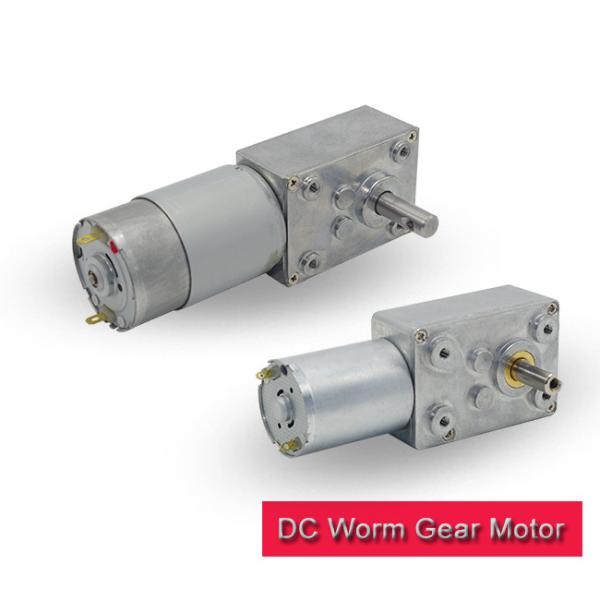

worm gearbox with dc motor 6 volt 12v 24v dc worm gear motor
Model: 46GF370/58GF555
Tytical Application:
Smart Robots
Precious instruments
Valve
Home appliance
Vending machine
Features:
Combine with RS-555 brush dc motor or RF-370 brush dc motor
Combine with 36mm or 24mm brushless dc motor
Shaft can be custom made such as threaded shaft
Dual output shaft available
Special customized gears available
DC worm gearbox
Voltage range: 6-24v
Speed range: 5-200rpm
Encoder available
Product Showcase:
Outline Drawing:
Gearbox Reduction Ratio:
| Gearbox Length (mm) | Stage Number | Reduction Ratio | Rated Torque | Bearable Maximum Instant Torque |
| kg.cm |
| 46 x 32 x 21.5 | 3 | 65/1 | 105/1 | 185/1 | | | | 3.0 | 6.0 |
| 4 | 320/1 | 412/1 | 478/1 | 600/1 | 900/1 | | 5.0 | 10.0 |
| Gearbox Length (mm) | Stage Number | Reduction Ratio | Rated Torque | Bearable Maximum Instant Torque |
| kg.cm |
| 58 x 40 x 21.5 | 3 | 52/1 | 105/1 | 202/1 | | | | 30.0 | 60.0 |
| 4 | 350/1 | 700/1 | | | | | 50.0 | 100.0 |
Motor Performance:
MODEL | REDUCTION RATIO | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL |
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT |
| V | rpm | A | rpm | A | kg.cm | W | kg.cm | A |
| 46GF370-65-06140 | 65/1 | 3.0~7.0 | 6.0 | 140 | 0.13 | 118 | 0.76 | 1.0 | 1.21 | 6.4 | 4.1 |
| 46GF370-105-0682 | 105/1 | 3.0~7.0 | 6.0 | 85 | 0.13 | 73 | 0.73 | 1.5 | 1.12 | 10.2 | 4.1 |
| 46GF370-65-12120 | 65/1 | 5.0~13.0 | 12.0 | 120 | 0.07 | 101 | 0.76 | 1.5 | 1.55 | 9.4 | 2.4 |
| 46GF370-478-1216 | 478/1 | 5.0~13.0 | 12.0 | 16 | 0.07 | 11.3 | 0.35 | 8.0 | 0.93 | 63.5 | 2.4 |
| 46GF370-900-2405 | 900/1 | 6.0~24.0 | 24.0 | 5.5 | 0.03 | 4.4 | 0.11 | 15.0 | 0.68 | 71.5 | 0.43 |
MODEL | REDUCTION RATIO | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL |
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT |
| V | rpm | A | rpm | A | kg.cm | W | kg.cm | A |
| 58GF550-52-12240 | 52/1 | 5.0~13.0 | 12.0 | 240 | 0.6 | 212 | 5.5 | 10.0 | 21.74 | 89.0 | 41.5 |
| 58GF550-104-12120 | 104/1 | 5.0~13.0 | 12.0 | 120 | 0.6 | 104 | 6.0 | 25.0 | 26.67 | 189.0 | 41.5 |
| 58GF555-202-2432 | 202/1 | 5.0~25.0 | 24.0 | 32 | 0.17 | 28 | 1.1 | 28.0 | 8.04 | 213.0 | 7.2 |
| 58GF555-350-2418 | 350/1 | 5.0~25.0 | 24.0 | 18 | 0.17 | 15.8 | 1.1 | 40.0 | 6.48 | 331.1 | 7.2 |
| 58GF555-700-2409 | 700/1 | 5.0~25.0 | 24.0 | 9 | 0.17 | 8.1 | 0.9 | 65.0 | 5.40 | 652.0 | 7.2 |
The Shaft and the motor performance such as voltage and speed can
be custom made.
Here attached the PDF spec.
46GF370.pdf
58GF550.pdf
